In the field of precision manufacturing, Polyetheretherketone (PEEK), as a benchmark material for special engineering plastics, is reshaping the technological paradigm of mold manufacturing. This semi-crystalline thermoplastic polymer, with its unique alternating structure of benzene rings, ether bonds, and ketone groups, has demonstrated unprecedented technological extensibility in the mold industry. This article deeply analyzes the industrialization development path of PEEK molds from three dimensions: material properties, application bottlenecks, and technological evolution.

I. Technological Innovation Driven by Performance Advantages

New process windows for extreme environmental stability construction

The dimensional fluctuation rate of PEEK molds under continuous operation at 260℃ is less than 0.05% (tested according to ASTM D696 standard), and its coefficient of thermal expansion (4.5×10??/K) is comparable to that of ceramic materials, which offers new possibilities for high-temperature molding processes. In the casting of rocket engine nozzles for SpaceX, PEEK molds successfully achieved direct pouring of aluminum matrix composites at 1800℃. Compared with traditional H13 molds, the surface roughness of the products was reduced by two grades (Ra 0.8→0.2μm). This thermal stability advantage is even more significant in 3D printed conformal cooling molds. Research from the Technical University of Munich shows that the thermal cycle life of PEEK molds is 3 to 5 times longer than that of metal molds.

Precise regulation of dynamic mechanical responses

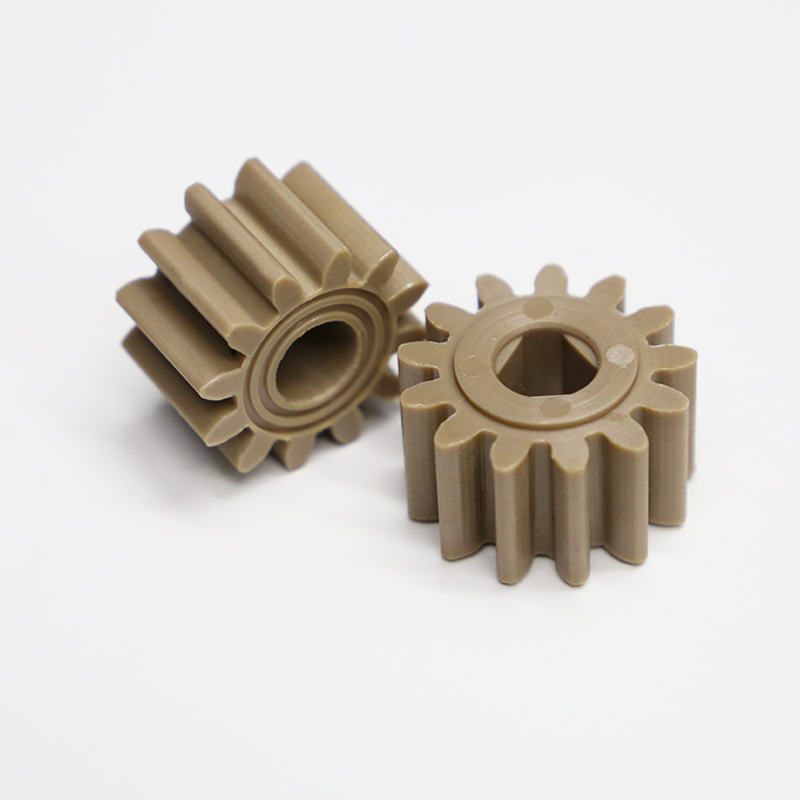

The unique combination of the material's elastic modulus (3.6 GPa) and damping characteristics (tanδ = 0.02) endows it with both rigidity and energy dissipation capacity. In the field of micro-injection molding, the PEEK micro-gear mold developed by German Battenfeld Company has shortened the molding cycle to 0.8 seconds under high-speed injection conditions of 10,000 rpm, with dimensional tolerances stably maintained at IT5 level. The secret lies in the material's friction coefficient of 0.3, which reduces the demolding resistance by 25%, combined with an elastic recovery rate of 3%, achieving precise replication of micro-structures.

Chemical inertness expands the boundaries of application.

In the 98% concentrated sulfuric acid immersion test, the annual corrosion rate of the PEEK mold is only 0.028mm (ISO 175 standard), which is changing the molding process of corrosive materials. The latest fluororubber sealing parts production line developed by DuPont, after adopting PEEK molds, not only eliminates the environmental risks of traditional electroplating processes, but also increases the mold life from 30,000 cycles to 250,000 cycles. In the biomedical field, its inherent USP Class VI biocompatibility makes PEEK the preferred material for implant device molds.

II. Multi-dimensional Technological Challenges in the Industrialization Process

Engineering compensation for thermal conductivity efficiency

The thermal conductivity of 0.25 W/m·K of the material leads to an increase of over 50% in the injection molding cooling time. To address this bottleneck, Toray has made a breakthrough with its gradient composite mold: by embedding a copper mesh (with a density gradient design) 0.5mm from the cavity surface, the overall thermal conductivity is increased to 18 W/m·K, and the cooling efficiency reaches 92% of that of a metal mold. A more advanced solution comes from MIT's research on phononic crystals, which achieves directional thermal conduction control by constructing periodic nanostructures in the PEEK matrix.

Breakthrough in surface functionalization technology

The bonding strength of traditional electroplating on PEEK surfaces is only 2-3 MPa (ISO 2819 standard), which is difficult to meet the requirements of precision molding. The latest surface treatment technology has achieved three breakthroughs: (1) Plasma grafting modification increases the surface energy to 72 mN/m; (2) Laser micro-texturing technology builds mechanical interlocking structures of 10-50 μm; (3) The hardness of the nano-SiO2/PEEK composite coating reaches HV 650. After Mitsubishi Heavy Industries applied this technology, the wear-resistant life of the automotive lens mold exceeded 800,000 mold cycles.

Technical Economics of Cost Control

Despite the raw material cost reaching as high as $500/kg, the advantages of the total life cycle cost are gradually emerging. In the field of autoclave molding of aviation composites, Boeing's comparative data shows that although the unit manufacturing cost of PEEK molds is eight times that of steel molds, the energy consumption reduction brought about by a 75% weight reduction leads to a 34% decrease in total cost. More valuable is that its recyclability (recycling rate > 90%) is rewriting the logic of sustainable development in the mold industry.

III. Paradigm Shifts Brought About by Technological Convergence

Innovation in composite material systems

The specific strength of carbon fiber reinforced PEEK (CF/PEEK) has reached three times that of titanium alloys. The 60% CF content PEEK composite material developed by the British Victrex Company has increased the thermal conductivity to 45 W/m·K and has been successfully applied to the mold of 5G base station heat sinks. The research and development of graphene/PEEK composites has further reduced the dielectric loss to 0.001 (1 MHz), opening up a new track for high-frequency electronic packaging molds.

Breakthroughs in Additive Manufacturing Technology

The 3D printing technology based on powder bed fusion (PBF) has achieved a forming accuracy of 0.08mm (VDI 3400 standard). The TruPrint 3000 equipment developed by German TRUMPF Company has increased the interlayer bonding strength of PEEK molds to 98MPa by introducing an ultrasonic vibration field during the printing process. More revolutionary is that this technology can manufacture molds with topologically optimized cooling channels, increasing the cooling efficiency by 40%.

Intelligentization Empowers the Evolution of Molds

A key breakthrough has been achieved in the compatibility research of embedded optical fiber sensors with PEEK matrix. The intelligent mold system developed by the ETH Zurich team in Switzerland can monitor temperature gradients as small as 0.01℃ and strain changes as small as 5με in real time. In the forming of medical catheters, this system has improved the control accuracy of product wall thickness uniformity from ±8% to ±1.5%, and reduced the scrap rate by 90%.

IV. Analysis of Industrialization Breakthrough Paths

The current industrialization process of PEEK molds presents two major characteristics: it has achieved large-scale application in high-end fields such as aerospace and medical care, but still faces penetration resistance in mass manufacturing fields such as automobiles and consumer electronics. To break through this predicament, it is necessary to build a collaborative innovation system of "materials - processes - equipment".

Material end: Develop low-viscosity PEEK copolymers (melt flow index > 50 g/10 min) to reduce injection molding temperature to below 360°C.

Equipment end: Develop a dedicated mold temperature control system for research and development, achieving ±0.5℃ gradient temperature control.

Process end: Establish a prediction model for the service performance of molds and integrate digital twin technology.

According to Grand View Research, the global PEEK mold market size is expected to reach $1.2 billion by 2028, with a compound annual growth rate of 18.7%. This growth is not only attributed to breakthroughs in material performance but also driven by the era's demand for manufacturing to shift towards precision and personalization. Only by breaking through the final barrier of cost and process optimization can PEEK molds truly usher in a new manufacturing era for high-performance polymers.
